Understanding Oil Cleanliness Class Measurement

When it comes to machinery maintenance and performance, Oil Cleanliness Class Measurement plays a critical role. From engines and hydraulics to gearboxes, oil is the lifeblood of machinery, keeping parts moving smoothly, reducing friction, and removing heat. However, like blood in the human body, if it becomes contaminated, it can wreak havoc. Tiny particles of metal, dust, and dirt may infiltrate, acting like sandpaper inside the system and significantly shortening the machine’s lifespan. This is where oil cleanliness class measurement becomes an indispensable tool.

We will walk you through the concept of oil cleanliness, its importance, and how cleanliness standards like ISO 4406, NAS 1638, and SAE AS4059 are used to measure and maintain oil quality for optimal machinery performance.

The Importance of Oil Cleanliness

Contaminated oil impacts machinery in more ways than you might think:

• Preventing Breakdowns: Contaminants can cause wear and tear, leading to unexpected breakdowns.
• Extending Machine Life: Ensuring oil cleanliness reduces abrasive damage, allowing components to last longer.
• Reducing Maintenance Costs: Cleaner oil translates to fewer repairs and lower downtime.
• Optimizing Performance: Machines run more efficiently when their oil is clean and free from abrasive particles.

For high-precision systems like hydraulics, even particles invisible to the naked eye can cause significant damage, making the measurement of oil cleanliness an absolute necessity.

Methods of Measuring Oil Cleanliness

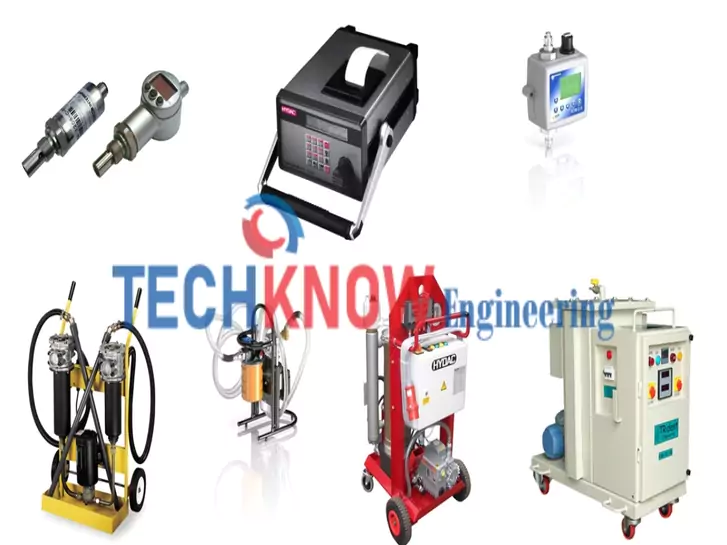

Oil cleanliness is all about counting and classifying particles based on their size. Specialized tools, such as particle counters and optical microscopes, help check for contaminants in oil samples. These measurements are then classified using international cleanliness standards, which include ISO 4406, NAS 1638, and SAE AS4059. Each standard provides a framework for categorizing the level of particulate contamination in the oil.

Let’s break down these standards for a deeper understanding.

ISO 4406 Cleanliness Standard Explained

The ISO 4406 cleanliness code is the most widely used standard for assessing oil cleanliness. It measures the number of particles in a 1 mL oil sample at three specific particle sizes:

• ≥4 µm
• ≥6 µm
• ≥14 µm

The results are represented as a 3-number code (e.g., 19/17/14). Each number corresponds to a predefined range of particle counts:

• The first number reflects particles ≥4 µm.
• The second number represents particles ≥6 µm.
• The third number covers particles ≥14 µm.

How the Code Works:

Lower numbers indicate cleaner oil. For example:

• A 19/17/14 code means there are fewer particles in the specified size ranges compared to a 22/20/16 rating, indicating cleaner oil.

The ISO 4406 standard is a critical benchmark for companies looking to monitor oil cleanliness and act proactively.

NAS 1638 Standard Explained

The NAS 1638 (National Aerospace Standard), originally designed for aerospace and military applications, classifies oil cleanliness into classes ranging from 00 (very clean) to 12 (very dirty). It measures the number of particles within a 100 mL sample across various size categories.

Key Features:

• Offers better control for systems demanding high precision.
• Still referenced in industries requiring stringent contamination control.

While NAS 1638 is an older standard, it remains relevant for sectors prioritizing ultra-clean oil due to high-precision machinery requirements.

SAE AS4059 Standard Explained

The SAE AS4059 standard, largely used in aerospace, is similar to ISO 4406 but has notable differences in particle size ranges and classification criteria. It categorizes contamination into specific particle size bands, providing detailed insights into oil cleanliness.

Why It’s Used:

This standard is especially beneficial for aerospace and aviation industries, where any deviation from optimal oil cleanliness can lead to catastrophic results.

The Impact of Oil Cleanliness on Equipment Life

The cleanliness of oil directly affects the lifespan and reliability of machinery. Here’s how contaminants impact performance:

• Wear and Tear: Abrasive particles cause pitting, scuffing, and scoring of components.
• Precision Degradation: For systems like hydraulics, even microscopic contaminants can disrupt the fine tolerances essential for operation.
• Thermal Stress: Contaminated oil struggles to remove heat efficiently, causing overheating.
• Frequent Failures: Dirty oil increases the likelihood of breakdowns, leading to halted operations and costly repairs.

Studies show that maintaining clean oil can extend the life of machinery components by up to 50%. This highlights the importance of proactive oil cleanliness monitoring.

Best Practices for Maintaining Oil Cleanliness

To ensure optimal equipment performance and oil cleanliness, organizations should adopt these best practices:

1. Conduct Regular Oil Testing: Use particle counters to monitor cleanliness levels against ISO, NAS, or SAE standards.
2. Invest in Quality Filtration Systems: Use advanced filters designed to capture microscopic particles effectively.
3. Reduce Contamination Sources: Store oil in clean, sealed containers to prevent contamination with dirt or water.
4. Frequent Oil Changes: Follow the manufacturer’s recommendations and replace oil before contaminants reach critical levels.
5. Use Clean Room Standards: Handle oil in a contamination-free environment to maintain its purity.

Taking preventive measures not only maintains oil cleanliness but also ensures your machinery operates efficiently for years to come.

Take Proactive Steps to Maintain Oil Cleanliness

Measuring and managing oil cleanliness is not just about maintaining machinery; it’s about sustaining long-term operational success. By understanding cleanliness standards like ISO 4406, NAS 1638, and SAE AS4059, organizations can take proactive steps to reduce machine damage, downtime, and repair costs.

Don’t wait for wear and tear to slow you down. Adopt routine cleanliness checks, invest in high-quality filtration systems, and ensure your team understands the importance of clean oil for peak performance.
