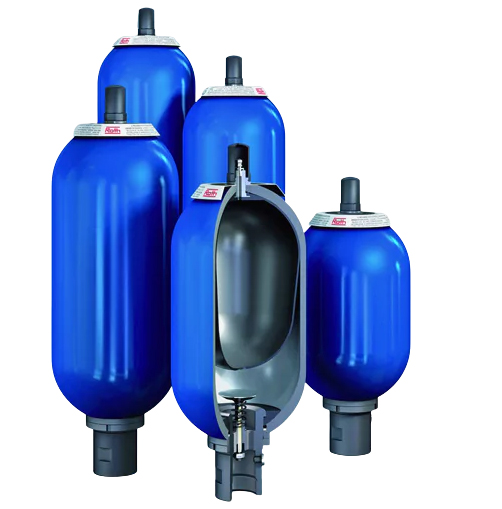

Bladder Accumulators comprises of a seamless cylindrical shell or welded body vessel, made of high tensile steel, consisting of a fluid section and gas section with rubber bladder mounted inside this shell which acts as the gas-proof screen. Based on application needs, this bladder is pre-charged to specified gas pressure with inert gas.
The drop in circuit pressure will eventually cause the inert gas filed inside the bladder to expand, and forces the stored fluid in the accumulator shell into the circuit.
A small oil volume of min 10% is maintained between the bladder bottom and Oil valve top, to ensure that the bladder bottom does not hit the oil valve during every gas expansion process.
Bladder Accumulators – Variants & Compatibility
Bladder Accumulators - Hydraulic bladder accumulators, Olaer bladder accumulators, EPE bladder accumulators, Hydac bladder accumulators, Bosch bladder accumulators, Rexroth bladder accumulators, NXQ bladder accumulators are widely used in industrial applications. Additionally, bladder type accumulators are versatile and reliable for energy storage.
We, being Bladder Accumulators Distributor, Bladder Accumulators Seller, and Bladder Accumulators Dealer, are able to provide reliable products from our Bladder Accumulators Manufacturers
Specifications of Bladder Accumulators
- Pressure : 20 …… 1000 bar.
- Nominal Volume : 0.63 ……. 600 litres
- Flow rate range : up to 100 l/s …. 3000 lpm
- Temperature range : -40 °C ... +100 °C
- Material of Construction - Accumulator shell - Carbon Steel, SS 316L, C.S. with Internal Ni-plating (20-40 micron), - Bladder Elastomer - Perbunan (NBR), Butyl (IIR), Ethylene oxide (ECO), Viton (FPM)
- Gas valve conn. - VG5, 5/8"/ 7/8" UNF, 1⁄4" BSP
- Fluid port conn. - 3/4", 1-1/4", 2", 2-1/2", SAE Flange
- Coatings - Primer, Ni Plating, Internal Rubber lining, offshore prime coat, plastic coatings
- Certification - Mfg. factory Standard, PED 97/23/EC, CE, U-Stamp, ASME VIII div 1, ABS, etc.
Other Features of Bladder Accumulators
- Fully Repairable type
- High flow rate can be obtained
- Compact construction
- Low maintenance
- Use with Manifold block with flanged fluid ports
- Transfer Barrier type version available, wherein it can be used with a back-up N2 bottle
- Also suitable for Hydro-Pneumatic and Hydro-Pneumatic Accumulator applications requiring shock absorption, pulsation damping, and energy storage.
Typical Applications of Bladder Accumulators
- Energy storage for intermittent operating system
- Energy reserve for emergencies
- Compensation of leakage losses
- Shock and vibration absorption
- Volume compensation due to system pressure and temperature changes
Advantages and benefits of Bladder Accumulators
- Fast discharge
- Immediate and instantaneous response
- No Pressure differential between gas and fluid side
- Compact design with minimum maintenance
- Adaptation to wide range of low and high temperature
- Suitable for wide range of low to medium and high pressure range
We offer a wide range of high-quality hydraulic solutions including the Hydraulic Bladder Accumulator, designed for energy storage, pressure stabilization, and pulsation damping. These accumulators play a vital role in maintaining system efficiency and are ideal for use in various industrial and mobile applications. Engineered for durability and high performance, they support safe and consistent operation under varying pressure conditions.
In addition to accumulators, we also provide Hydraulic Dampners and Hydro-Pneumatic Accumulators, which help in absorbing shocks and minimizing pressure fluctuations in hydraulic circuits. Our advanced hydro-pneumatic systems are designed to deliver reliable performance in demanding environments. Whether for industrial machinery or mobile equipment, our solutions ensure optimal performance and system longevity.
Please call or contact us to assist you with your requirements for parts or spares of Bladder Accumulators, or for servicing and system integration. We’ll be delighted to help and assist!
