What Are Accumulator Stations?
Every hydraulic system works under pressure. Depending on the application, pressure must be monitored and regulated, while fluid volume is managed for backup or delivery. An Accumulators Stations achieves this efficiently.
A single accumulators may not always be practical due to technical or commercial reasons. In such cases, multiple accumulators are connected together to form an accumulator station.
The key to selecting the right accumulator station is understanding your system requirements and specifications.
Technical Details for Designing Accumulator Stations
To size and configure the correct accumulators stations, the following system parameters are essential. These details ensure reliable performance, safe operation, and proper energy storage capacity:
- Minimum working pressure (bar)
- Maximum working pressure (bar)
- Minimum working temperature (°C)
- Maximum working temperature (°C)
- Volume of oil to be delivered (litres)
- Cycle time for oil delivery (seconds)

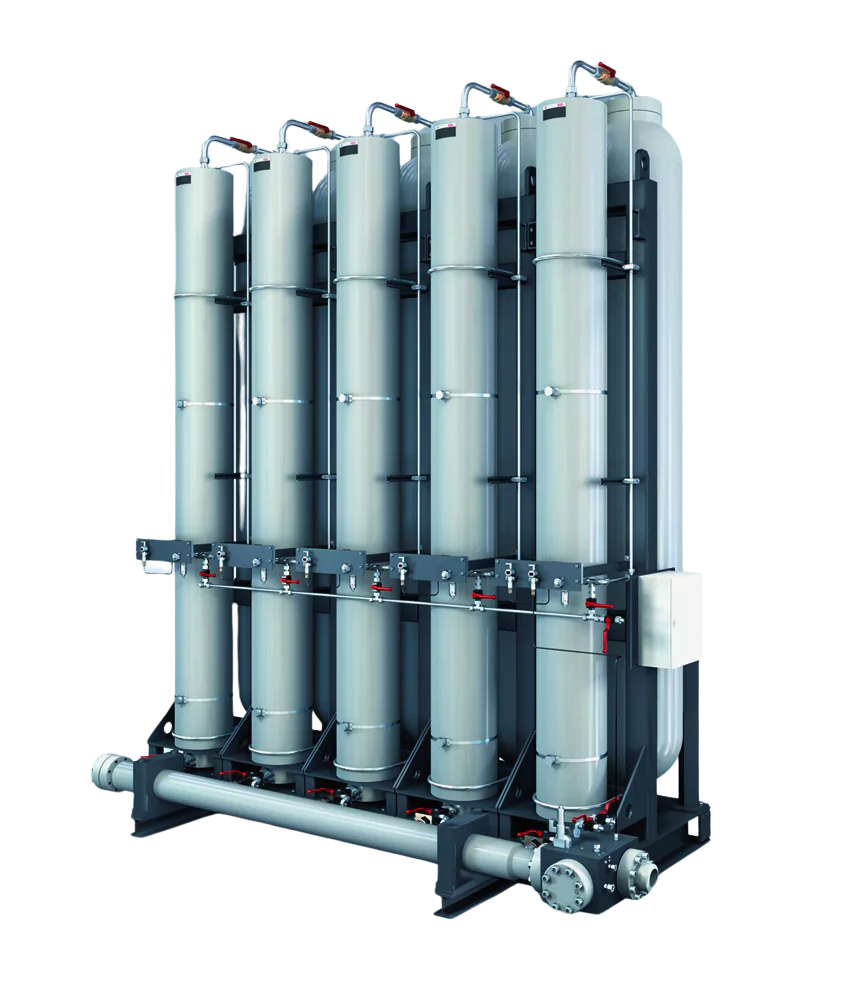

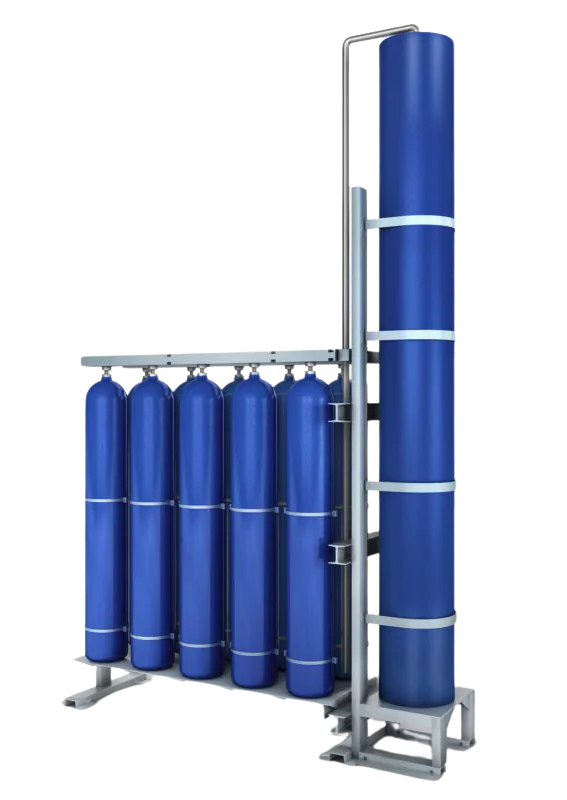

Composition of an Accumulator Station
An Accumulator Station is a ready-to-use hydraulic system designed with all the necessary controls for safe and efficient operation. Depending on system requirements, it may include:
- Single bladder accumulators with nitrogen bottle
- Multiple bladder accumulators connected via common piping and ball valves
- Single or multiple piston accumulators with nitrogen bottles
- Accumulators mounted on a support frame with instrumentation
Each station is custom-built to customer specifications, with the required type, make, and size of accumulator. Key accessories such as ball valves, safety blocks, pressure gauges, and relief valves are included. All connections are provided with leak-free carbon steel pipes and fittings.
Whatever your application requirements, our team can size, design, and supply the right accumulator station to ensure system reliability and safety.
We also provide below-mentioned types of Accumulators Stations and related accessories designed to ensure safe operation, proper mounting, and effective handling of the Accumulators.
FAQ
Accumulator Stations are systems made up of several accumulators connected together for monitoring and regulating pressure in hydraulic applications. When a single accumulator is not sufficient due to commercial or technical reasons, multiple accumulators are linked to provide the required fluid capacity and backup pressure for specific application needs.
In many cases, a single accumulator cannot handle the technical or commercial requirements of a hydraulic system. Accumulator Stations allow larger fluid volumes, meet higher or specialized pressure demands, provide redundancy for critical systems, and offer cost-effective solutions for systems with multiple components.
We design and supply customized Accumulator Stations, including:
- Single bladder accumulator connected to one nitrogen bottle
- Multiple bladder accumulators linked via a common pipe with ball valves
- Single or multiple piston accumulators connected to multiple nitrogen bottles
- Piston accumulator units mounted on support frames with associated instruments
To design the right solution, we require the following details:
- Minimum working pressure (bar)
- Maximum working pressure (bar)
- Minimum operating temperature (°C)
- Maximum operating temperature (°C)
- Oil volume to be delivered (liters)
- Time required to supply the oil (seconds)
Our ready-to-use Accumulator Stations include all necessary controls and components such as:
- Type, manufacturer, and size of accumulators
- Safety blocks and ball valves
- Pressure gauges and relief valves
- Carbon steel fittings and piping
- Leak-free tested connections
Yes. We specialize in designing and delivering customized Accumulator Stations based on your exact pressure, volume, and operational needs. Our engineers collaborate closely with you to ensure a reliable and efficient solution tailored to your application.
The correct choice depends on your system specifications. Our technical team will analyze your requirements and recommend the most suitable station. Share your technical details with us, and we’ll provide the optimal solution for your application.
We provide comprehensive support including application assessment, system design, product selection, and ongoing technical assistance. From initial consultation to commissioning, our team ensures your accumulator station delivers maximum system performance and reliability.
We provide high-quality Accumulator Stations from trusted manufacturers including HYDAC, Olaer, Parker Hannifin, Bosch Rexroth, EPE, Fox, Buccma, NXQ, and Hawe. These stations are engineered for safe, reliable operation and long service life in demanding industrial hydraulic systems.
Certified designs • Custom engineering • On-site support • Fast delivery across India
