What is a Pressure Line Filter? A Complete Guide for Hydraulic Systems

Keeping hydraulic systems running smoothly is essential for optimal machinery performance, and a major factor in achieving this is ensuring that hydraulic components are protected from contamination. Enter Pressure Line Filters, a crucial part of hydraulic systems that preserve the integrity of sensitive components while reducing downtime and maintenance costs.

This guide will explore what pressure line filters are, how they function, their types, benefits, maintenance tips, and how you can troubleshoot issues. Whether you’re a machinery maintenance technician or an equipment operator, this post will walk you through the essentials of pressure line filters to help enhance your system’s efficiency.

What Are Pressure Line Filters, and Why Are They Important?

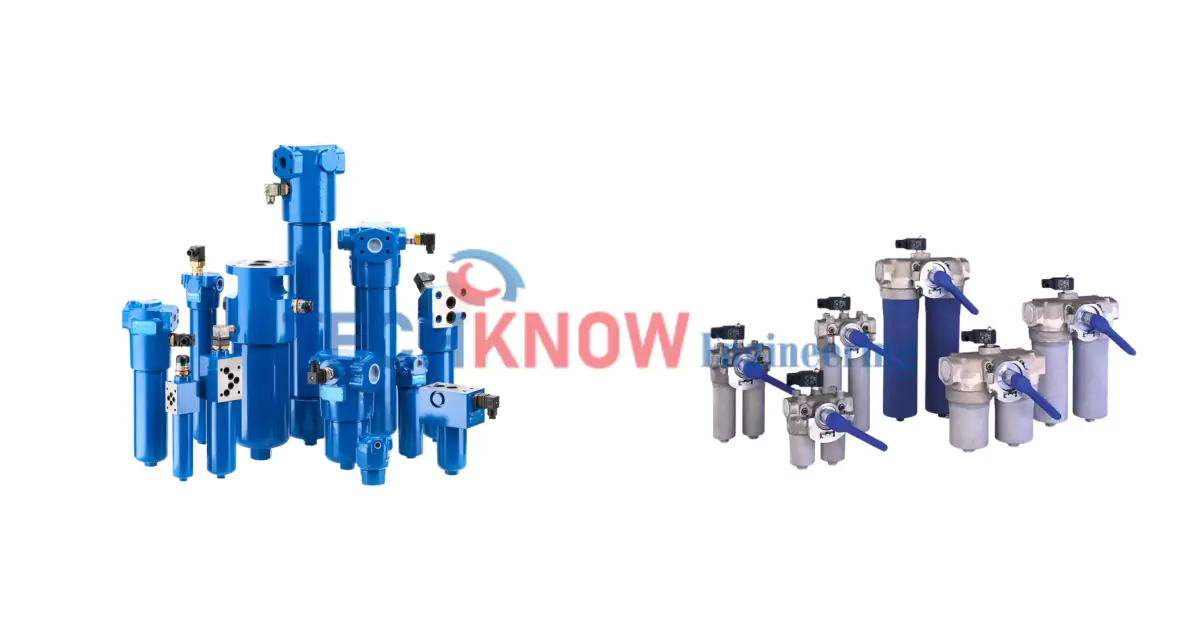

A pressure line filter is a vital component in hydraulic systems, designed to protect sensitive parts like servo valves, proportional valves, and other critical components from particulate contamination.

Contaminants—such as dust, metal filings, or sand particles—can enter the hydraulic circuit and compromise system functionality. Pressure line filters prevent these particles from causing wear, damage, or complete system failure. These filters are typically positioned downstream from the hydraulic pump, just before other system components, to trap contaminants before they can cause harm.

At Techknow Engineering Enterprise, our range of high-quality hydraulic pressure line filters is engineered to handle system pressure, ensuring your machinery’s smooth and efficient operation.

Key Components of Pressure Line Filters and How They Work

Pressure line filters consist of several critical components that work together to ensure effective filtration and protection. Here are the main elements:

• Filter Housing:

The casing that encloses the filter element. Usually made of durable materials like aluminum or stainless steel, the housing is designed to handle high operating pressures.

• Filter Element:

The heart of any pressure line filter, these trap contaminants. Materials for filter elements include stainless steel wire mesh or inorganic fibers and are selected based on the application’s filtration needs, ranging from 3 µm to 200 µm.

• Bypass Valve:

Allows hydraulic fluid to bypass the filter when the filter element becomes clogged, preventing system downtime or potential pressure build-up.

• Clogging Indicator:

A useful tool that alerts operators when the filter element requires replacement, ensuring the system remains efficient.

• End Caps and Seals:

These ensure secure fitting within the filter assembly and prevent hydraulic fluid leakage.

Pressure line filters operate by allowing hydraulic fluid to flow through the filter element, trapping contaminants while letting clean fluid pass to downstream components. They are meticulously designed for optimal flow rates and filtration performance under high pressure.

Types of Pressure Line Filters

Different applications require different filter configurations. Here are the primary types available:

• Simplex Filters:

A single filter unit that gets replaced or cleaned during system downtime. Best suited for non-continuous applications.

• Duplex Filters:

Feature dual filter housings for continuous operations. One filter remains active while the other is serviced.

• Inline Filters:

Ideal for threaded and flanged mounting configurations. These are versatile and commonly used for everyday applications.

• Manifold Filters:

Designed for side or top mounting, often to DIN 24340/CETOP R 35 H standards, they integrate seamlessly into hydraulic manifolds.

Explore top-tier options like Hydac pressure line filter configurations and high pressure inline filters available through Techknow Engineering Enterprise to fulfill your specific application needs.

Benefits of Using Pressure Line Filters

Pressure line filters offer several compelling advantages for hydraulic systems:

• Enhanced Component Protection:

Filters prevent contaminants from wearing out or damaging expensive parts like servo valves or actuators.

• Improved System Reliability:

By maintaining a clean hydraulic system, filters reduce unexpected breakdowns and improve uptime.

• Cost Savings:

High-dirt-holding capacity and durable filter elements lower operating costs by reducing the frequency of replacements.

• Compact and Lightweight Designs:

Modern filters are designed with minimal dimensions, making them easier to incorporate into existing systems without adding excess weight.

• Energy Efficiency:

Clean fluid ensures smooth operation, reducing energy losses caused by clogged components or inefficient flow.

Maintenance and Care Tips for Pressure Line Filters

Regular maintenance of your high pressure line filter is critical to ensure optimal system performance. Follow these essential tips:

• Inspect Filters Regularly:

Periodically check the clogging indicator to spot blockages early.

• Replace Filter Elements Promptly:

Use the manufacturer’s guidelines to determine when to replace filter elements. Delayed replacement can lead to bypass activation and contamination.

• Clean the Housing During Maintenance:

Before installing a new filter element, carefully clean the filter housing to remove any residual contaminants.

• Use Genuine Parts:

Always opt for authentic spare parts for filters (e.g., Hydac filter elements) to ensure compatibility and efficiency.

• Monitor Operating Pressure and Flow Rate:

Abnormal readings could indicate clogging, leaks, or a failing bypass valve.

Enhance Hydraulic System Performance with Pressure Line Filters

Pressure line filters are indispensable for keeping hydraulic systems efficient, reliable, and long-lasting. From their ability to protect sensitive components to their ease of maintenance, incorporating high-quality filters ensures reduced downtime, boosted productivity, and lower costs for equipment operators and technicians.

At Techknow Engineering Enterprise, we pride ourselves on offering an extensive selection of Hydac pressure line filters, high pressure inline filters, and inline pressure filters tailored to meet diverse industrial needs. With operating pressures up to 420 bar and multiple filtration options, our filters deliver uncompromising performance for any application.

Explore our complete Hydac pressure line filter catalog or contact us today for guidance and support in finding the right solution for your hydraulic system. Let’s build a system that delivers both efficiency and peace of mind.
