Importance of Pressure Line Filters in Hydraulic Systems
Pressure line filters play a critical role in hydraulic systems, ensuring hydraulic oil remains clean and free from debris that can compromise efficiency and damage precision components.
Installed downstream of the system pump, hydraulic pressure line filters safeguard both upstream and downstream equipment. These filters are vital for protecting sensitive elements such as servo valves and proportional valves, where even minor contamination can affect control accuracy and performance.
Engineered to operate under full system pressure, inline high-pressure hydraulic filters capture particles generated by pump wear or external sources. By maintaining clean fluid, they extend component life, minimize maintenance intervals, and ensure stable system operation in demanding industrial environments.
At Techknow Engineering Enterprise, our principals and associates bring years of expertise to deliver a complete range of pressure line filter series. Available in multiple housing dimensions, lengths, and filtration degrees, these filters ensure reliable protection against particulate contamination for almost any hydraulic application. Each filter element is carefully selected based on your system’s requirements to guarantee longevity, efficiency, and optimal performance.

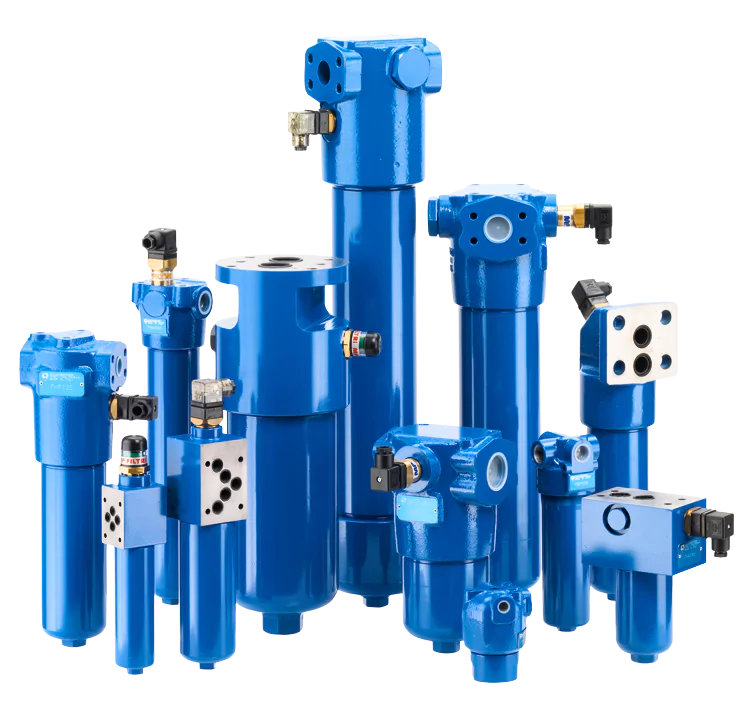

Configurations Available in Our Pressure Line Filters

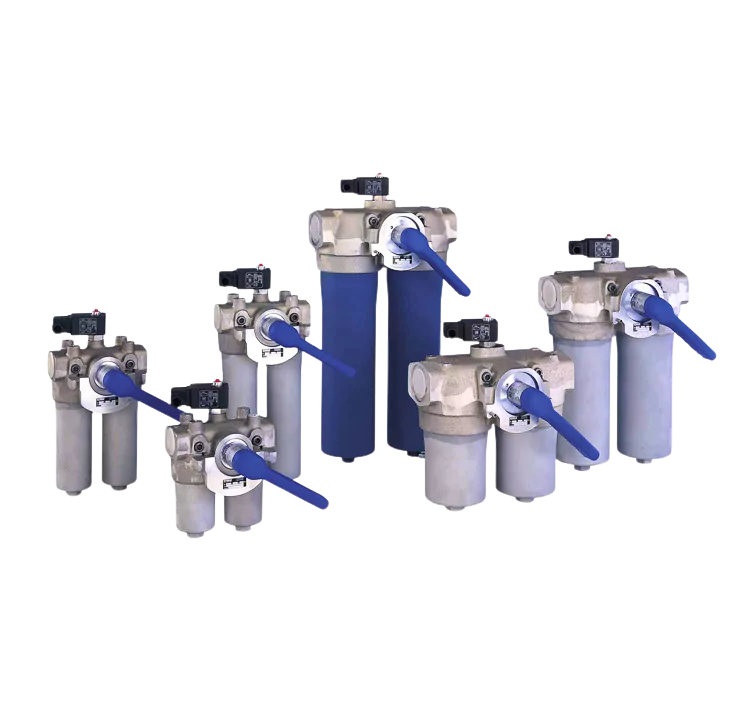

- Filter type – Simplex and Duplex (continuous operation options)
- In-line mounting – Threaded and flanged
- Manifold – Top and side mounting
- DIN 24340 / CETOP R 35 H manifold mounting
Product Features of Pressure Line Filters
- Operating pressure: up to 420 bar
- Flow rates: up to 2500 l/min
- Filter rating: 3 to 200 µm
- Filter materials: Inorganic fibre, SS metal fibre, Wire mesh
- Absolute or nominal filtration (depending on material)
- Operating temperature: -30 °C to +100 °C
- Available with non-return valve, by-pass, and reverse flow options
- Compatible with all conventional operating media
- Multiple clogging indicator options available
Key Benefits of Using Pressure Line Filters
- High-efficiency, fine filtration for sensitive components
- High dirt-holding capacity elements = reduced running costs
- Compact dimensions and lightweight aluminium housing
- Multiple mounting patterns for flexible installation
- Non-welded housing design for long life and safe operation
Discover our complete range of Hydac pressure line filters, high pressure inline filters, hydraulic pressure line filters, and other inline pressure solutions. Contact us today for the Hydac pressure line filter catalogue or speak with our experts for technical support and customized recommendations.
📞 Request a Quote / Get CatalogueOur team shall recommend the most-optimum solution possible, listed herewith for your application with best suited Filter Elements, including the right pressure line filter element, and Clogging Indicators to overcome contamination challenges and ensure machine availability with cost savings.
FAQ
Pressure line filters are installed downstream from system pumps to protect sensitive components such as valves and servo systems. They operate at system line pressure, capturing particles generated from pump wear or external contamination. This ensures critical valve protection, optimal performance, and extended service life of hydraulic systems.
We offer multiple configurations, including:
- Filter types: Simplex and Duplex (for continuous operation)
- In-line mounting: Threaded and flanged
- Manifold mounting: Top and side, DIN 24340/CETOP R 35 H compliant
- Operating pressures up to 420 bar
- Flow rates up to 2500 l/min
- Filtration ratings from 3–200 µm
- Filter media options: inorganic fiber, stainless steel fiber, and wire mesh
- Absolute or nominal filtration ratings available
- Optional features: non-return valve, bypass, reverse flow, and multiple clogging indicators
- High-efficiency, full-flow filtration for sensitive components
- Large dirt-holding capacity reduces operational costs
- Compact, lightweight design with flexible mounting options
- Durable, non-welded aluminum housings for safety and long service life
- Compatible with all conventional hydraulic media
Industries and applications supported include:
- Construction and heavy machinery
- Oil & Gas operations
- Marine and offshore equipment
- Power generation plants
- Mining and earthmoving equipment
- Industrial manufacturing facilities
- Automotive and transportation fleets
Yes. We offer custom solutions including element materials, housing dimensions, flow rates, and filtration ratings tailored to application-specific requirements. Our team can recommend configurations optimized for your system’s protection and performance.
Yes. By removing contaminants before they damage pumps, valves, or actuators, filters reduce downtime, extend component life, and lower long-term maintenance expenses.
Techknow Engineering Enterprise supplies Hydac pressure line filters as well as premium filters from other global brands. We also provide technical assistance, catalogs, and tailored solutions to match your hydraulic system requirements. Contact us for product details and customized support.
We supply high-quality Hydraulic Pressure Line Filters from trusted manufacturers including Hydac, Bosch Rexroth, STAUFF, ARGO-HYTOS, MANN, MAHLE, EPE, HENGST, FILTREC, MP Filtri, and Donaldson, ensuring efficient filtration, system protection, and long service life for hydraulic applications.
