What Is a Return Line Filters? Everything You Need to Know

Return Line Filters play a crucial role in hydraulic systems, ensuring components operate smoothly and efficiently. If you’ve worked with hydraulic machinery, you’ve likely encountered these filters or heard of their importance—but how exactly do they work, and why are they essential?

This comprehensive guide dives into the fundamentals of return line filters, their types, how to select the right one, and how to maintain them, along with real-world applications. Whether you’re a hydraulic engineer, fluid power technician, or maintenance professional looking to enhance your knowledge, this article provides valuable insights.

What Is a Return Line Filters?

A return line filter, also known as a hydraulic return filter or hydraulic tank return filter, is one of the final barriers for contamination in a hydraulic system. Positioned on the return line of a hydraulic circuit, these filters capture solid particles and impurities in the fluid before it returns to the hydraulic reservoir. This ensures the operating fluid is cleaned before being reused, protecting the entire system from wear and tear caused by contaminants.

Most commonly, return line filters are mounted either inline or, preferably, on the hydraulic tank top. For example, tank-top-mounted filters have their heads and covers installed on the reservoir, with the filter element sitting inside the tank. This space-efficient design is widely used in industries like construction, agriculture, and earthmoving equipment.

Why Are Return Line Filters Important in Hydraulic Systems?

Hydraulic systems rely on clean fluid to operate effectively. Contaminated oil can cause significant damage to components, increasing wear and potentially leading to system failure. Return line filters serve as the last line of defense, removing contaminants generated during system operation and ensuring only clean fluid cycles back into the reservoir.

Key Benefits of Return Line Filters:

• Prolonged Component Life: Prevent excess wear on pumps, valves, and cylinders.
• Enhanced System Reliability: Minimize the likelihood of breakdowns caused by contamination.
• Cost Efficiency: Return line filters are typically more affordable than pressure filters.
• Improved Machine Utilization: Reduced downtime for maintenance translates into better productivity.

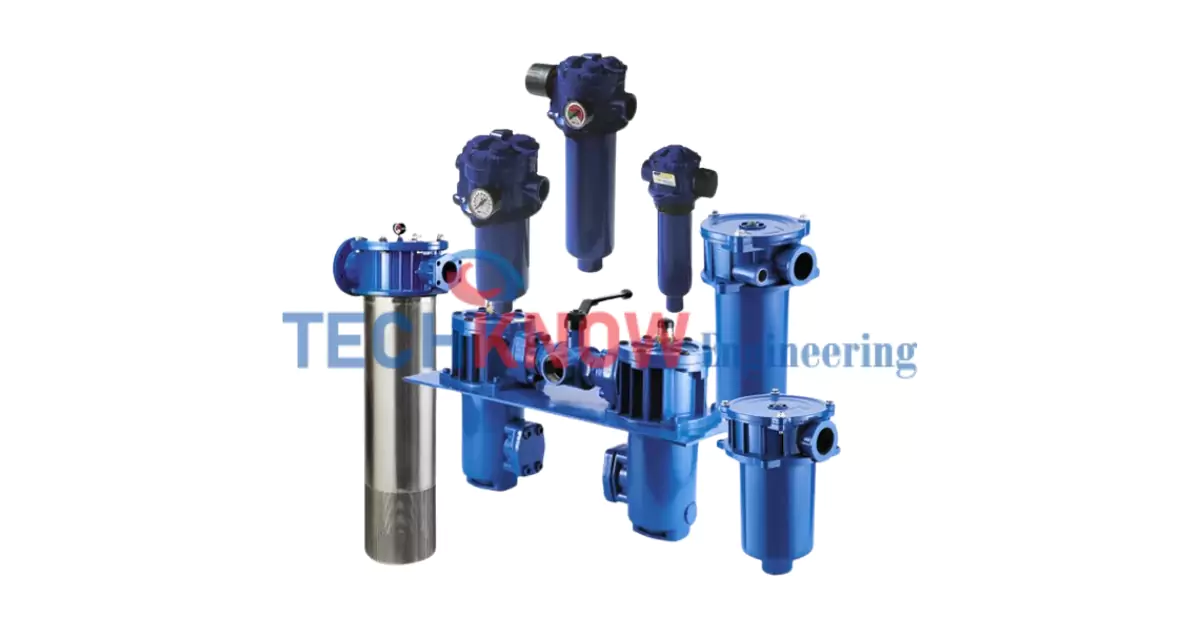

Types of Return Line Filters

Return line filters come in different types to meet various system demands. Understanding these options is essential to selecting the right filter for your hydraulic system. The most common configurations include:

1. Simplex Filters

These filters have a single filter housing and are suitable for operations where occasional downtime for filter maintenance is acceptable. They are cost-effective but require the system to pause when replacing the filter element.

2. Duplex (Change-Over) Filters

Designed for operations that run continuously, duplex filters allow the flow to switch between two filter housings for seamless maintenance without shutting down the system. This is ideal for industries with around-the-clock operations.

3. Tank-Top Filters

These filters are integrated on the hydraulic tank, with the element located inside the reservoir. They save space and are a popular choice for OEMs in construction and agricultural machinery.

4. Inline Filters

Inline filters are mounted directly into the return line and are preferred in systems with limited space for tank-top configurations.

How to Choose the Right Return Line Filters

Selecting the right return line filter depends on several factors, including the specific requirements of your hydraulic system. Here are some key considerations:

1. Flow Capacity

Ensure the filter can handle the maximum flow rate of your system, measured in liters per minute (l/min). This is particularly important to prevent flow surges caused by multiple valves or rapid cylinder discharges.

2. Pressure Rating

Check the filter’s operating pressure capacity. Most return line filters operate up to 25 bar, but this should be matched to your system’s requirements.

3. Filtration Efficiency

Choose between absolute and nominal filtration based on your system’s needs. Filters are available with ratings from 3 to 200 µm, depending on the material (e.g., glass fiber, cellulose, wire mesh).

4. Compatibility

Ensure the filter materials and seals are compatible with your hydraulic fluid and operating temperatures (e.g., -30°C to +100°C).

5. Mounting Preference

Consider space constraints when deciding between tank-top, inline, or tank-insert configurations.

6. Accessories

Modern return line filters often come with optional accessories like magnetic bars, air breathers, or bypass valves. These accessories can enhance system performance and longevity.

Maintenance and Troubleshooting Tips

To keep your return line filter operating at peak efficiency, regular inspection and maintenance are necessary. Here are a few tips:

• Monitor Pressure Drop: A significant pressure drop across the filter could indicate a clogged element. Replace it immediately.
• Use a Bypass Valve: If the system does not already include one, a bypass valve can prevent fluid starvation when the filter becomes clogged.
• Inspect Seals and Components: Regularly check for leaks or wear on seals, gaskets, and other filter components.
• Choose Quality Replacements: Use OEM-approved or high-quality replacement elements to avoid compatibility issues.

Benefits of Using High-Quality Return Line Filters

• Cost Savings: Reduced maintenance costs and fewer component replacements.
• Extended Service Life: High-quality filters improve the durability of hydraulic system components.
• Better System Performance: Prevent unplanned downtime and increase productivity.

The Future of Return Line Filtration Technology

Advancements in filter media and smart sensors are redefining filtration technology. Future return line filters may include IoT-enabled diagnostics, providing real-time data on filter health and fluid cleanliness. Such innovations will further optimize maintenance schedules, reduce downtime, and enhance overall system efficiency.

For hydraulic systems to perform at their best, return line filters are not just an option but a necessity. By selecting the right filter and maintaining it properly, you can safeguard your equipment and maximize operational efficiency.
