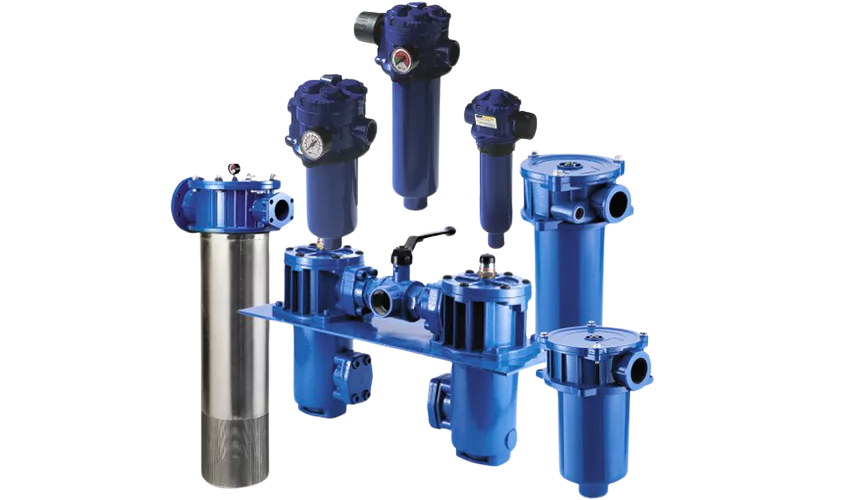

Overview of Hydraulic Return Line Filters
Hydraulic return line filters are available for tank-top mounting or inline installation, with the tank-top variant being the most widely used option in compact hydraulic systems. Acting as the final stage of filtration in the hydraulic circuit, these filters ensure that clean hydraulic oil returns safely to the reservoir.
How Return Line Filters Work
Positioned at the end of the circuit, return line filters capture solid contamination particles before they re-enter the tank. This prevents wear and failure in pumps, valves, and actuators. By keeping the hydraulic fluid clean and filtered, these systems maintain efficiency and extend component service life.
Benefits of Tank-Top Return Filters
The tank-top return line filter design is the most popular among OEMs due to its space-saving structure, where the head and cover are mounted externally while the element remains inside the reservoir. These filters are widely used in construction, agricultural, and earth-moving equipment such as tractors, harvesters, and loaders for dependable oil filtration and easy maintenance.
Continuous Operation Advantage
For 24/7 hydraulic operations, change-over return filters are recommended. They allow filter replacement without interrupting system flow, reducing downtime and keeping production lines running efficiently.
Handling Flow Surges
Hydraulic return line filters must be correctly sized to handle flow surges caused by valve operations or rapid cylinder discharge. Selecting the right filter element and capacity for the system’s maximum hydraulic flow rate (l/min) ensures proper contamination control and consistent performance.
Key Features of Return Line Filters
- Available in Simplex and Duplex configurations
- Operating pressure: up to 25 bar
- Flow rates: up to 15,000 l/min
- Filter rating: 3 to 200 µm depending on filter media
- Filter materials: Glass fibre, Cellulose, Wire mesh, Stainless steel fibre, Paper, and Water-absorbent media
- Absolute or nominal filtration available depending on filter type
- Operating temperature range: -30 °C to +100 °C
- Connection options: Threaded and Flanged (DN 300)
- Compatible with all conventional hydraulic fluids
User Benefits of Return Line Filters
- Cost-effective – cheaper compared to pressure line filters
- Easy maintenance with quick filter replacement
- Flexible layouts – tank-top, tank-insert, and in-line options
- Wide range of accessories available: dipsticks, diffusors, built-in air breathers, filling plugs, magnetic bars, and by-pass valves
- Extends service life of system components and reduces downtime
- Ensures better machine utilization and long-term operational efficiency
Our team will recommend the most-optimum solution possible, listed herewith for your application, with the best-suited Filter Elements, including the right return line filter element and Clogging Indicators to overcome contamination challenges and ensure machine availability with cost savings.
FAQ
Return line filters are installed at the end of a hydraulic circuit (tank-top or inline) to filter the return flow before it re-enters the reservoir. They remove solid contaminants, protecting pumps, valves, and other components. By ensuring clean fluid, they extend system lifespan and provide smooth, reliable operation.
We provide a range of configurations, including:
- Filter types: Simplex and Duplex (for continuous operation)
- Mounting options: Tank-top, tank-insert, and inline
- Change-over housings for uninterrupted 24/7 operations
- Operating pressure up to 25 bar
- Flow rates up to 15,000 l/min
- Filtration ratings: 3–200 μm depending on media
- Filter media: glass fiber, cellulose, stainless steel fiber, wire mesh, paper (incl. water absorbent)
- Absolute and nominal filtration available
- Operating temperature: -30 °C to +100 °C
- End connections: threaded and flanged (up to DN 300)
- Compatible with all conventional operating fluids
- Cost-effective compared to pressure line filters
- Simple maintenance and replacement
- Extended component service life
- Reduced downtime and higher utilization
- Flexible layouts for different spaces
- Optional accessories: dipsticks, diffusors, air breathers, filling plugs, magnetic bars, and by-pass valves
Applications include:
- Construction and heavy machinery
- Oil & Gas operations
- Marine and offshore systems
- Power generation plants
- Mining and earthmoving equipment
- Industrial manufacturing
- Automotive and transportation fleets
Filters should be selected based on maximum system flow rate to handle sudden valve actions or cylinder discharges. High-quality filter elements ensure effective contaminant retention, minimizing risk during flow surges while maintaining stable system performance.
Yes. We offer various materials, micron ratings, and mounting configurations to meet your application-specific needs. Our experts recommend optimal solutions for maximum reliability and performance.
Tank-top return line filters save space by mounting directly onto the reservoir with the filter element inside. This compact, efficient design is ideal for OEM equipment such as construction, earthmoving, and agricultural machines, providing effective filtration with minimal ongoing maintenance.
We provide high-quality return line filters from trusted manufacturers including Hydac, Bosch Rexroth, STAUFF, ARGO-HYTOS, MANN, MAHLE, EPE, HENGST, FILTREC, MP Filtri, and Donaldson, ensuring effective filtration, reliable protection, and long service life for hydraulic systems.
